In QA we use robotic arm to autonomously operate a multifunctional device (MFD) according to a given test that is repetitive, time consuming or not performable by a human.

How does the robot know where is the screen located? How do the 2D screen coordinates transform to the robot’s system?

calib1 clanekRobot moves the end effector (stylus) in the 3D Cartesian coordinate system with the origin [0,0,0] at the center of the first servomotor. Position of the stylus is then transformed to angles of all servomotors by inverse kinematics. It is also possible to calculate position of stylus given the angles of the servomotors (forward kinematics). However the screen of the MFD is a 2D plane in the 3D space with unknown origin, dimensions and rotations. Robot needs to know where the screen is located relatively to its origin in order to correctly tap any button on the screen.

Dimensions of the screen need to be measured by hand in millimeters. We use 2D coordinates with origin at the bottom left corner to define position on the screen. In 3D space position and rotation of any plane is uniquely determined by three non-collinear points. If these three points are known, transformation matrix can be found. This matrix multiplied by position on the plane is equal to corresponding position in 3D space.
Previously we used ‘basic’ calibration where the robot is navigated through the bottom left corner [0, 0] (origin of the screen), top left corner [0, height] and top right corner [width, height]. At each corner, stylus’ position (in 3D space) is saved and transformation matrix is calculated. This method of calibration requires a lot of precision because even a slight deviation from the corner leads to a similar deviation in every robot’s tap so robot might not accurately tap the desired button. There is no feedback from the MFD, but sometimes there is no other way to perform the calibration.

calib2 clanek

With the new semi-automatic calibration we created our custom version of Terminal server (component which handles communication with MFD) that detects any tap on the MFD screen and sends its coordinates (X,Y in pixels) into the Robot application. Screen resolution is also required so Terminal Server sends that on demand. With the knowledge of screen dimensions and screen resolution robot is able to calculate position of a tap (in pixels) to position on the screen (in millimeters) and save the end effector’s position. The semi-automatic calibration procedure is almost the same as the basic one but robot can be navigated to any point within a marked rectangle, not just the specific point at the corner. This nullifies the need for precision. However, in this case a problem occurred in form of inaccurate values of Z axis. For this purpose we have developed an automatic recalibration. This recalibration takes data gained from semi-automatic calibration and automatically repeats the procedure of semi-automatic calibration with the knowledge of existing corners of the screen. It goes through those three corners same as before, however it starts higher above each point and slowly descends to accurately measure the Z coordinate. After recalibration all data from semi-automatic are forgotten and replaced with the values from automatic calibration. This procedure eliminates any error made by an engineer during calibration and makes the robot´s calibration nearly perfect.

Most systems today need to handle the user authentication. That means, the password entered during user registration must be stored in the system for later comparison.

It is obvious that the passwords must not be stored in plain-text form. In that case, if an attacker succeeded in getting access to the database, where these passwords are stored (e.g. using SQL Injection), he would obtain the whole list of user names with their corresponding passwords. Then it is very simple for him to impersonate a valid user.

Hashing

However, to check, if the password entered by the user is correct, we do not need the original password. It is enough to have a suitable information, which uniquely identifies it and can be easily computed from each password entering the system.

Such information is the password hash. Hash algorithm is a one-way function, generating a fixed-length string from the inputs (in this case from the given password) with no possibility to derive these inputs back from the computed string. Another property of a cryptographic hash function is that change of one input bit leads to change of many bits in the resulting hash. When the hash function is collision-free, we can assume that the identical hashes imply the identical inputs, from which these hashes are computed.

So instead of the password itself, only its hash will be stored in the system. Every time a user tries to login to the system, hash of the password entered is computed and compared to the stored one.

Slow hashing

However, cryptographic hash functions such as MD5 or SHA are not appropriate. The purpose of these functions is calculation of digest of large amount of data to ensure its integrity. This digest needs to be computed in as short time as possible, and thus these hash functions are designed to be fast. This property is, however, not desirable for password hashing.

As an example take the MD5 function. One 2.13GHz core is able to compute cca 6 million MD5 hashes per second using Cain & Abel tool. Trying every single possible 8 character long lowercase alphanumeric password then takes approximately 130 hours. And that is only one core. Modern computers use more of them, for example with six such cores a password can be cracked in less than a day. Furthermore, we can definitely assume that an attacker has much better equipment.

In order to prevent an attacker from trying millions of hashes per second, we need to use a slow cryptographic hash function for password hashing. Several hash functions were specifically designed for this purpose. These functions include: PBKDF2, bcrypt, scrypt.

Work factor parameters

These hash functions are not only slow, they also come up with work factor parameters defining how expensive the hash computation will be. Although the scrypt function is the youngest one (designed in 2009), it has an advantage over the older ones – it not only defines the CPU cost, but also the memory requirements. That is why scrypt is recommended function for password storage and this article talks mainly about it.

Scrypt uses following work factor parameters:

  • N – number of iterations, related to both memory and CPU cost
  • r – size of the RAM block needed, related to memory cost
  • p – parallelization, defines maximum number of threads, related to CPU cost

These parameters allow to set the memory needed and time it takes to compute one hash. The approximate memory usage for a single hash generation can be computed from the parameters using the following formula:

memory  =  N  ·  2  ·  r  ·  64

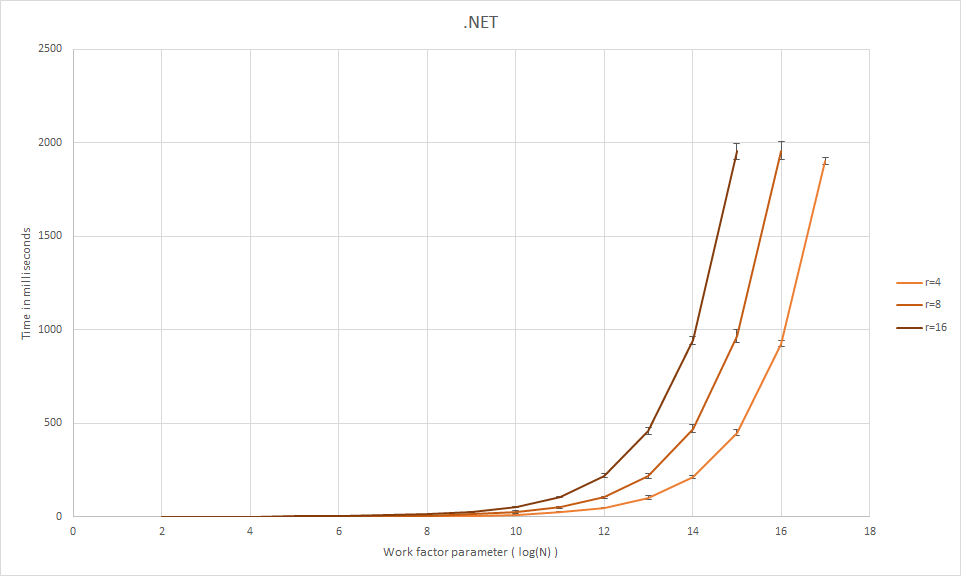

The time, on the other hand, is platform-dependent. The graph below shows dependency of time needed for single hash computation on the work factor parameters N and r. The parallelization parameter is set to 1 in all cases. The values in the graph were measured using CryptSharp, the C# implementation of scrypt function, on Windows Server 2012 with four 2.2GHz cores.

csharp_Server12_scrypt

It is needed to specify the computation time as a compromise between the usability and security provided. For example, if we have a system with only one login at a time and high security is needed, we set the parameters to make computation take cca one second. However, in case of many parallel logins this time needs to be set to only few milliseconds.

We can take the above example of password hash cracking. Using scrypt function (CryptSharp implementation) with parameters N=210, r=4 and p=1, hashing of one password takes approximately 10ms, i.e. this 2.2GHz core is able to compute 100 hashes per second. Then computation of all possible 8 character long lowercase alphanumeric passwords takes 895 years.

Attacker goals

Imagine an attacker, who obtained the list of user names and corresponding password hashes. There are now three goals he can have:

  • Crack a password of one specific user (e.g. admin)
  • Crack a password of any user
  • Crack passwords of a longer list of users

Attacks

In the first option the attacker has a password hash and wants to find the corresponding password it was computed from. He can use brute force or dictionary attack, i.e. try many possible inputs to the hashing function and compare the results with the obtained password hash.
An effective method for trying so many hashes is usage of lookup tables. The general idea is to pre-compute hashes of possible passwords and store them in a lookup table data structure (or Rainbow tables for lower memory requirements). Comparison of these pre-computed values with given hash is much faster than hash computation.

The second option is simpler. The only thing needed is to compute hashes of possible inputs and compare each result with all password hashes in the obtained list. Sooner or later the attacker will hit some match.

For cracking a longer list of hashes the attacker does not need to crack one password at a time, he will instead compare each computed hash with all hashes from the list. This way cracking of a hashes list takes approximately the same time as cracking only one specific password.

Salt

The above attacks work because each password is hashed the same way, the same password always results in the same hash. The simplest way of preventing against this is salting. That means, a random string (salt) is generated for each password and used together with it to create a hash.
It is needed to ensure uniqueness of the salts, thus they really need to be randomly generated. Any random number generator can be used, however, cryptographically secure RNGs, such as RNGCryptoServiceProvider in C# or SecureRandom in Java, are recommended.

The salt is a non-secret value, it needs to be stored together with the password hash to ensure its availability to the hash function. Thus, if someone gets access to the hashes, he automatically gets also all the salts. However, the salt power is not in its secrecy, but in randomness.

With different salt, same passwords result in different hashes. Pre-computed hash attack is infeasible due to a large additional memory requirements – an attacker needs to store pre-computed hashes for each possible salt.

Cracking password of any user is reduced to cracking password of a specific one, since the salt for each user password is different.

Also cracking of a larger list of hashes is more complicated with different salt for each password, the attacker has no other choice than cracking one password at a time.

Pepper

In order to increase security even more, we can use another randomly generated string – pepper. In comparison to the salt, pepper needs to be kept secret as it is used as an HMAC key. HMAC is a one-way algorithm based on hash function generating fixed-length string from the input message and a secret key, which in our case is generated pepper.

Since pepper is a secret key, it needs to be generated using a cryptographically secure random number generator, such as RNGCryptoServiceProvider.

public static byte[] GeneratePepper()
{
    byte[] pepper = new byte[32];
    RNGCryptoServiceProvider rng = new RNGCryptoServiceProvider();
    rng.GetBytes(pepper);
    return pepper;
}

When generated, the pepper must be stored separately in a configuration file with restricted access.

Although an attacker had enough resources to be able to crack the hash function, he would still need this secret value for obtaining the user password. And with pepper randomly generated for each system instance, if one instance is compromised, other remain secure.

Overall scheme

The overall hashing of the password with both salt and pepper looks as follows:

scrypt ( Base64 ( HMAC ( ‘SHA256’, password, pepper ) ), salt, workFactors )

And the C# implementation of this scheme using CryptSharp library:

public byte[] HashPassword(String password, byte[] pepper, byte[] salt)
{
    if (salt == null)
    {
        Console.WriteLine("Password hash not created - salt is null.");
        return null;
    }

    String encodedHmac = HmacBase64(password, pepper);
    return CryptSharp.Utility.SCrypt.ComputeDerivedKey(Encoding.UTF8.
         GetBytes(encodedHmac), salt, n, r, p, null, HASH_LENGTH);
}

private static string HmacBase64(string password, byte[] pepper)
{
    if (pepper == null)
    {
        Console.WriteLine("Password hash not created - pepper is null.");
        return null;
    }
    HMACSHA256 hmac = new HMACSHA256(pepper);
    hmac.Initialize();
    byte[] buffer = Encoding.UTF8.GetBytes(password);
    byte[] rawHmac = hmac.ComputeHash(buffer);
    return System.Convert.ToBase64String(rawHmac);
}

Conclusion

User passwords must never be stored as plain text, always compute its hash using a slow cryptographic hash function. To each password generate random salt and use this value together with the password for hash computation. For higher level of security generate random secret pepper for each system instance.

Of course, security of the user password depends on the password itself. An attacker could still try frequently used passwords such as “123456”, however, with secure storage we can protect him from trying too many of them and from obtaining the strong ones.

As many of you may know, Android supports native printing since Android 4.4. This means, that there is new api handling communication between application from which user prints and application that later sends the job to the printer.

android print

So how it works? First lets have a look at applications from which user prints.

Main responsibility of these applications is to prepare output for print in pdf format. This includes for example paging or updating image to landscape or portrait mode.

Application from which user prints uses then system PrintManager service.

PrintManager printManager = (PrintManager) getSystemService(Context.PRINT_SERVICE);

Document output is prepared with PrintDocumentAdapter which is passed as second parameter of PrintManagers print function.

printManager.print(jobName, new PrintDocumentAdapter(...), printAttributes);

Now we are heading to the second part of job printing, where we have to discover printers and send them our job. This is responsibility of PrintService.

Printer discovery

We can either add printers manually. Set their ip address and port, or we can look for network printers in the local network.

Let’s have a look on how to find printers which support Zeroconf discovery in local network. Implementations of Zeroconf are for example Avahi daemon or Bonjour.

When printer discovery in Android is started, onCreatePrinterDiscoverySession() method in PrintService is called. Here we have to create our PrinterDiscoverySession.

Responsibilities of PrinterDiscoverySession are pretty straightforward.

  • find and add discovered printers
  • remove previously added printers that disappeared
  • update already added printers

In this example we will use NsdManager. NsdManager is native Android solution for finding zeroconf services. On the other hand its functionality is very limited, but for purpose of this demo it’s satisfactory. There exist other and better solutions, for example JmDNS. Current limitation of NsdManager is not being able to load txt records of mDNS messages.

In order to use NsdManager we have to implement two interfaces. DiscoveryLisener (handles discovery callbacks) and ResolveListener (handles resolving callbacks). I will call them OurDiscoveryListener and OurResolveListener.

First in onStartPrinterDiscovery() method we create new instance of DiscoveryListener and start the actual discovery.

discoveryListener = new OurDiscoveryListener(nsdManager);
nsdManager.discoverServices(SERVICE_TYPE, NsdManager.PROTOCOL_DNS_SD, discoveryListener);

This is pretty self-explanatory. We specify discovery service type, which is either “_ipps_.tcp.” or “_ipp_.tcp”, depending on the fact if we want to encrypt ipp messages or don’t.

And when service is found, then OurDiscoveryListener will handle what happens in individual states of discovery.

In the following code we can see that for example when service is found we try to resolve it with NsdManager.

public void onServiceFound(NsdServiceInfo service) {
    nsdManager.resolveService(service, new OurResolveListener());
}

Resolving service means, that we try to get more information about the service. This includes host ip and port. OurPrinterResolveListener then handles states what should happen when resolving succeeds or fails. When resolving succeeds, we process gained data and save it for future use.

Last part of printer discovery is to find more details about selected printer and checking whether is this printer still available. This is handled in onStartPrinterStateTracking() method.

Discovering details about printer can be done for examaple with ipp operation Get-Printer-Attributes and according to received data, set the printer information. Second function is to keep tracking of the printer state.

The following code sample just shows how to set few printer capabilities, which should be set according to the printer attributes. This doesn’t contain  tracking of printer state.

@Override
public void onStartPrinterStateTracking(PrinterId printerId) {
    // check for info we found when printer was discovered
    PrinterInfo printerInfo = findPrinterInfo(printerId);

    if (printerInfo != null) {
        PrinterCapabilitiesInfo capabilities = new PrinterCapabilitiesInfo.Builder(printerId)
                .setMinMargins(new PrintAttributes.Margins(200, 200, 200, 200))
                .addMediaSize(PrintAttributes.MediaSize.ISO_A4, true)
                .addMediaSize(PrintAttributes.MediaSize.ISO_A5, false)
                .addResolution(new PrintAttributes.Resolution("R1", "200x200", 200, 200), false)
                .addResolution(new PrintAttributes.Resolution("R2", "200x300", 200, 300), true)
                .setColorModes(PrintAttributes.COLOR_MODE_COLOR |
                        PrintAttributes.COLOR_MODE_MONOCHROME, PrintAttributes.COLOR_MODE_COLOR)
                .build();

        printerInfo = new PrinterInfo.Builder(printerInfo)
                .setCapabilities(capabilities).build();

        // We add printer info to system service
        List<PrinterInfo> printers = new ArrayList();
        printers.add(printerInfo);
        addPrinters(printers);
    }
}

When different printer is selected, then onStopPrinterStateTracking is called and onStartPrinterStateTracking again.



Printing:

Android itself doesn’t contain implementation of any printing protocol. Because of this I created small IPP parser. But that’s topic for another day.

Here I will only show example of handling queued print job.

In the following code we pick one job according to id from saved processed jobs and set his state to printing. Class PrintTask in the following example is just Android AsyncTask which in background creates IPP request and appends job data.

public void handleQueuedPrintJob(PrintJobId printJobId, PrinterId printerId) {
    final PrintJob printJob = mProcessedPrintJobs.get(printJobId);
    if (printJob == null) {
        return;
    }

    if (printJob.isQueued()) {
        printJob.start();
    }

    OurPrinter ourPrinter = ourDiscoverySession.getPrinter(printerId);

    if (ourPrinter != null) {
        AsyncTask <Void, Void, Void> printTask =
                new PrintTask(printJob, ourPrinter);
        printTask.execute();
    }
}

In case that we have decided to use ipps, we also have to set correct certificate. Next step is to create new HttpURLConnection. (or HttpsURLConnection for secure transfer).

The last thing we have to do is to write into the output stream our IPP message, send it and wait for response from server.

Android manifest file

We have to set necessary permissions in the Android manifest file, in order to be able to run the PrintService.
Add android.permission.BIND_PRINT_SERVICE when creating the service. Example:

...
<service android:name=".OurPrintService"
    android:permission="android.permission.BIND_PRINT_SERVICE">

    <intent-filter>
        <action android:name="android.printservice.PrintService" />
    </intent-filter>
</service>
...

This allows system to bind to the PrintService. Otherwise the service wouldn’t be shown in the system.

Also

<uses-permission android:name="android.permission.INTERNET"/>
<uses-permission android:name="android.permission.START_PRINT_SERVICE_CONFIG_ACTIVITY" />

permissions are needed for printer discovery and to access files in external storage.
